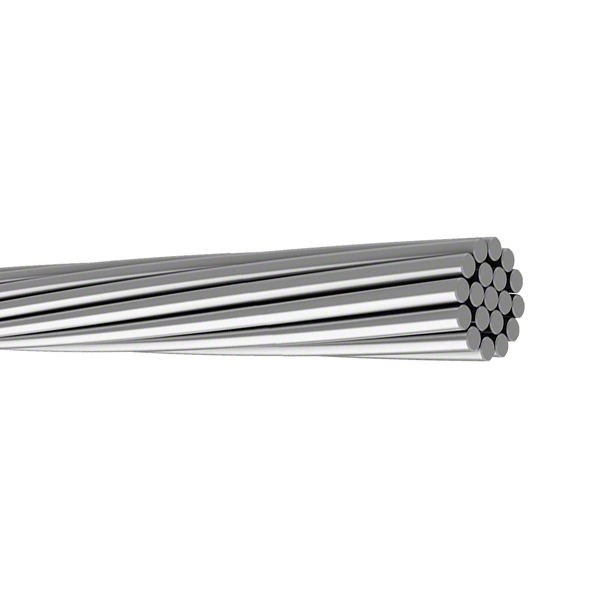

High Quality Overhead Line All Aluminum conductor Application AAC conductor is also known as aluminum stranded conductor, which are used in urban areas where spans are usually short but high conductivity is required, and are in common use on overhead lines for in low, medium and high voltage. The excellent corrosion resistance of aluminium has made AAC a conductor of choice in coastal areas. Although aluminium-to-copper connections can be made, it is better to use aluminium conductors for service connections, as various forms of covered cable are available for this purpose
ConstructionConcentric lay stranded Aluminium Conductor is manufactured from electrolytic ally refined aluminium with a minimum purity of 99.7%. and made up of one or more strands of hard drawn 1350 aluminum.
Concentric lay stranded Aluminium Conductor is manufactured from electrolytic ally refined aluminium with a minimum purity of 99.7%. and made up of one or more strands of hard drawn 1350 aluminum.
Density at 20℃: 2.703 kg/dm3
Temperature Coefficient at 20°C: 0.00403 (°C)
Resistivity at 20°C: 0.028264Ω•mm2/m
Coefficient of linear expansion: 23 x10-6 (°C)
Seismic Acceleration: 0.12 – 0.05g
Ambient Temperature: -5°C – 50°C
Wind Pressure: 80 – 130kg/m2
Isokeraunic Level: 10 – 18
Relative Humidity: 5 – 100%
All Aluminum Conductors (AAC) GB/T1179-2008 Standard
